Up To 1.9 Gbps Data Transfer Rate EM7355 Module Supporting Guest Network Optimized For Corporate Wireless Infrastructure

  • Up To 1.9 Gbps Data Transfer Rate EM7355 Module Supporting Guest Network Optimized For Corporate Wireless Infrastructure
  • Up To 1.9 Gbps Data Transfer Rate EM7355 Module Supporting Guest Network Optimized For Corporate Wireless Infrastructure
  • Up To 1.9 Gbps Data Transfer Rate EM7355 Module Supporting Guest Network Optimized For Corporate Wireless Infrastructure
Place of Origin China
Markenname Sierra Wireless
Model Number EM7355
Min Bestellmenge 100
Preis $12.00 - $20.00/pieces
Verpackung Informationen Das Original ist brandneu.
Lieferzeit 2-5 Werktage
Zahlungsbedingungen L/C, T/T
Versorgungsmaterial-Fähigkeit 10000 Stück/Stücke pro Tag
Produktdetails
Frequenz-Band-Klasse DOPPELBAND Speichergröße Bandmitte 128
Datenübertragungsrate bis zu 1,9 Gbps Verwendung Haushalte
Konnektivitätstechnologie Kabellos Gast-Netz Ja
Gewicht Nicht angegeben Zahl von Antennen 3
Hinterlass eine Nachricht
Produkt-Beschreibung

EM7355 Datasheet

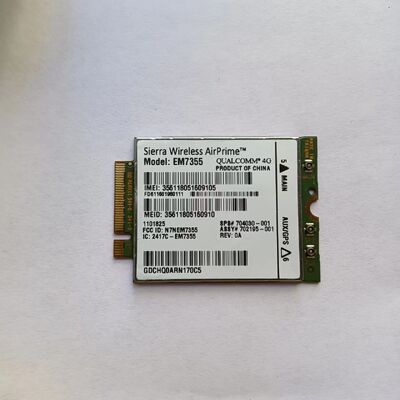

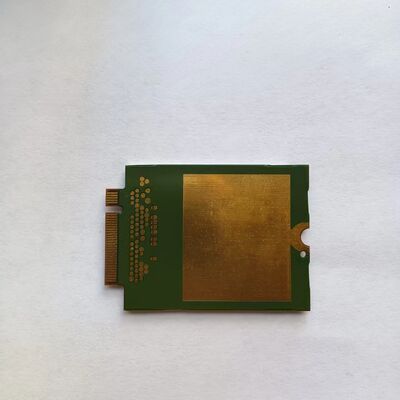

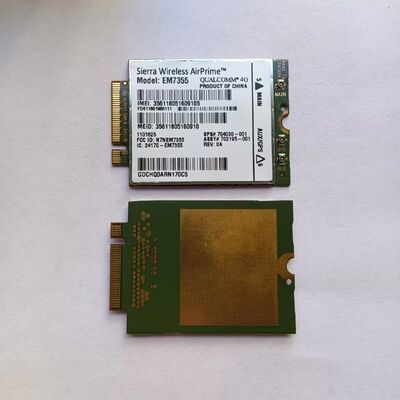

EM7355 is a 4G LTE Cat.3 M.2 wireless communication module from the AirPrime series by Sierra Wireless . It is mainly used in laptops, industrial PCs, tablets and other devices to provide global multi-mode cellular network access and GNSS positioning.


I. Core Specifications


  • Manufacturer: Sierra Wireless
  • Chipset Platform: Qualcomm MDM9615
  • Package: M.2 3042 (52-pin)
  • Dimensions: 42 × 30 × 2.3 mm
  • Network Standards:
    • LTE FDD Cat.3: Downlink 100 Mbps, Uplink 50 Mbps
    • Supports DC‑HSPA+ / HSPA+ / WCDMA, CDMA 1x/EVDO Rev.A, GSM/EDGE
    • GNSS: GPS + GLONASS (passive antenna supported)

  • Main Frequency Bands (North American Version):
    • LTE: B2/B4/B5/B13/B17/B25
    • UMTS: B1/B8/B26
    • GSM/EDGE: 850/900/1800/1900 MHz
    • CDMA: 800/1900 MHz

  • Interface: USB 2.0
  • Operating Temperature: -25°C ~ +60°C
  • Certifications: FCC, IC, PTCRB, AT&T / Verizon / Sprint / T‑Mobile carrier certifications
  • System Support: Windows 7/8, Linux


II. Typical Applications


  • Built-in 4G for laptops and ultrabooks
  • Industrial tablets, rugged notebooks (e.g. Panasonic Toughbook)
  • Automotive, medical and financial terminals
  • IoT gateways and industrial routers


III. Features


  • Multi-mode full network compatibility: Covers mainstream North American 4G/3G/2G bands
  • High integration: Built-in RF, baseband, power management and GNSS for simplified design
  • Complete certifications: Directly usable in end products, reducing certification costs
  • Industrial temperature range: Adaptable to harsh environments


IV. Usage Notes in Mainland China


EM7355 is a North America-customized version and does not support Chinese LTE bands B1/B3/B8. 4G service is basically unavailable in mainland China; only partial 2G/3G (China Unicom) may be accessible in some areas. For domestic 4G use, models supporting B1/B3/B8 such as EM7345, EM7455, FM350 are recommended.
